The use of specialised metal racks is a common albeit costly practice in the automotive sector. Packaging engineers are working on making them lighter and more modular.

The use of specialised metal racks is a common albeit costly practice in the automotive sector. Packaging engineers are working on making them lighter and more modular.
Although automotive packaging continues to become more standardised on a global basis – especially plastic pallets, containers and totes – the need for non-standardised or specialised packaging is still an essential element for moving many parts. One of the main types of specialised packaging is returnable metal racks that are used primarily to transport large and heavy components such as body panels, engines, transmissions and cockpit modules, to name a few.
Such parts require more protection or stronger equipment, whether for movements within plants or even across continents in some cases. As such, the equipment is more often bespoke to each item. In this way, metal racks are linked to the critical parts that they help to move, and such packaging needs to be considered immediately once part shapes and designs are determined, if not before.

The right rack design will principally improve pack density, truck loading, maintenance, part safety, and ergonomics. Increasingly, manufacturers are also looking for opportunities to introduce modular designs or standards wherever possible for metal racks.
But that standardisation is complicated by both the part and packaging variation itself. Contract manufacturer and supplier Magna Steyr, for example, uses specialised metal racks for body shop apertures, such as roofs, hoods, fenders, as well as cooling modules, headliners, and instrument panels for models such as the Mercedes G-Class and the Mini Cooper. According to Gerhard Hammerschmid, head of the supply chain competence centre, across the company’s five vehicle programmes, it uses ten different rack lengths, seven widths, and four heights, which equal about 280 different specialised metal racks.

Many uses to a rack
The use of metal racking is common and widespread among carmakers, driven by part shapes, protection and line-feeding strategies. Fiat India Automobiles uses specialised metal racks for transporting parts from its suppliers to its plant near Pune. It also uses them for sequencing and kitting parts from its warehouse to the production line. According to Kalpesh Pathak, vice-president of corporate supply chain, the decision to use specialised racks normally depends on factors such as shape, transport distance, and quality concerns. “Standardised racks are preferable for long distance vendors in order to optimise our transportation costs,” he explains. “However, we use specialised metal racks where part geometry does not enable us to use standard racks and where specific holding, locking, or placement is required to avoid part-to-part contact and avoid damage during transport.”


Specialised metal racks are commonly used for the skin panel, seat set, bumper, dashboard, muffler, engine, suspension, among others. “As we introduce more parts for sequencing and kitting, we will increase our use of specialised metal racks to minimise constraints,” Pathak says.
Another OEM in India, Mahindra & Mahindra, generally uses specialised metal racks for the transport and line feeding of aggregates, high-and-medium value sheet metal parts, and some trim parts, according to Gavi Ishwar, manager of the company’s packaging centre of excellence. “We also use them for transporting some subassemblies from suppliers that are located within a 200-kilometre radius of our plants,” he explains.
According to Eric Schweers, senior engineering and process manager at Surgere, a US-based packaging specialist, the most significant demand for bespoke metal racks typically occurs about six months ahead of a major vehicle changeover. For example, new vehicle styling means there is a need for new exterior sheet metal, which in turn require new or modified shipping racks. Interior products or powertrains require the same developments.
"We use specialised metal racks where part geometry does not enable us to use standard racks and where specific holding, locking, or placement is required to avoid part-to-part contact and avoid damage." - Kalpesh Pathak, Fiat India

Along with providing part protection and separation, Schweers points out that specialised racks must also orient correctly at the line side, as well to assembly workers’ movements. Having an adequate supply of specialised metal racks is also essential; in this respect, Surgere helps the customer to obtain the correct quantity of racks and to identify a control plan for maintaining them.
Mekins Industries offers specialised steel racks to the automotive sector in India. CEO Mayank Agarwal says that the trend in India is for end-to-end service, including concept design, prototype build, trials, mass production, and maintenance. Besides logistics costs, the main criteria for using specialised metal racks are whether the part is an inner panel or outer panel and to what extent part-to-part contact is acceptable, according to Agarwal. Inner panels might allow contact and minor scratches, which may not be visible to the end user. “For example, outer panels and door assemblies ship in specialised metal racks and inner stampings ship in standardised racks,” he says.
Big and clunky

As racks are often heavy and expensive to ship, most companies try to limit their use to products located closer to assembly lines. At logistics provider TCI Supply Chain Solutions, based in Gurgaon, CEO Jasjit Sethi says that its highest demand for specialised metal racks are in vendor parks, which are closed circuit networks. “Here, the cost of the reverse leg is negligible, and the speed of the JIT and JIS processes increases with a ready-to-use part,” he says. TCI also uses specialised metal racks for local suppliers within a 30km radius. For example, in Pune, Fiat, Tata Motors, Volkswagen, and General Motors all produce within 100km with their suppliers nearby.

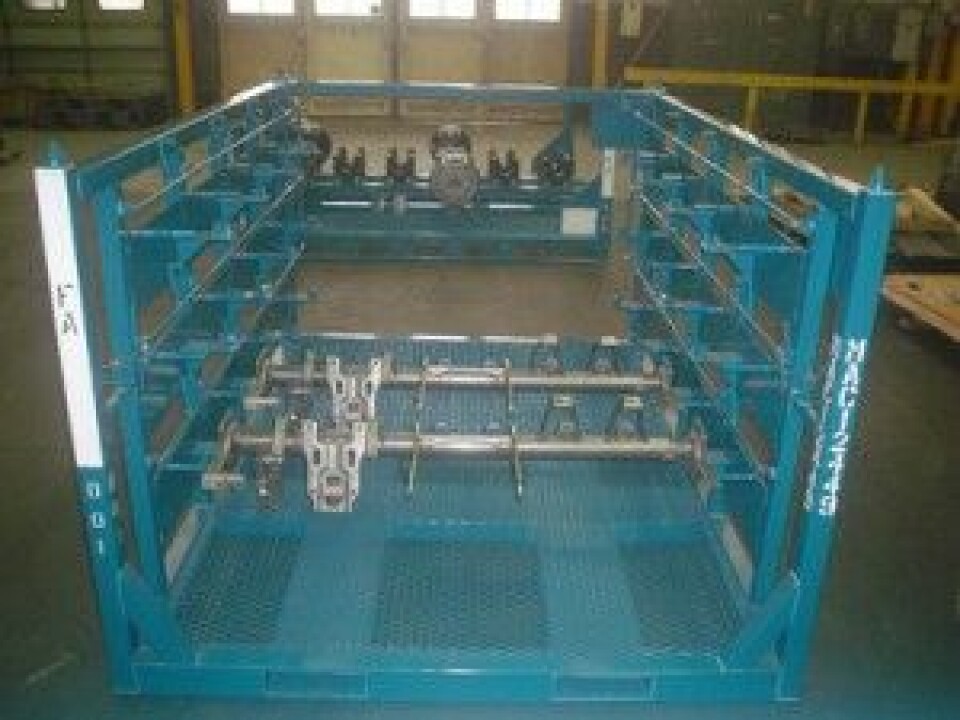

Mahindra_Before Closing VCI
Sethi says that most larger parts originate near the assembly plant, such as axles, gearboxes, and engines, and these typically flow from one OEM plant to another instead of from the tier one to the OEM. TCI ensures that parts are secure in the rack. “A small axle may fit easily, but five or six flat parts must be secure by design or by dunnage,” says Sethi.
Hammerschmid says that Magna Steyr’s use of specialised metal racks changes depending on part quality, price, loading or unloading requirements, and materials used, such as aluminium instead of steel. He also emphasises that they should be used to the least degree possible because of transport costs.

“For us, the transportation cost is critical due to the distance between our plant in Graz, Austria and our suppliers,” he says. “The idea is to use low cost, standardised packaging for long distance transportation, and then special racks for local, short distances.”
As its specialised rack network develops. Surgere has found improvements in packaging tare weight, packaging density, and part protection, driving transport savings, helping in-plant labour, and reducing damage, according to Schweers.
Schweers notes that the use of collapsible specialised racks is more common in Europe, but it is growing too in the US. He says that, unlike steel racks, aluminium ones are much more expensive and not as common. Furthermore, they are more difficult to weld. However, they are lighter weight while still strong.

Mahindra & Mahindra also designs standard footprints with minimum varieties to maximise the cubic utilisation, says Ishwar. Previously, it had used non-foldable specialised metal racks for transporting parts over long distances. To improve its return transport efficiency, Mahindra & Mahindra introduced foldable specialised racks in 2010 for shipping from tier one supplier to its vehicle assembly plants that enabled it to achieve a return ratio of three to one.

A move towards the modular

Sethi acknowledge that there can be a tendency to customise too much and make racks inflexible for alternative uses. “The specialised metal racks have a much longer payback period, so the utility over its life span is an important factor,” says Sethi.

Carmakers often try to add as many standard features to the specialised racks as possible. Around 70-80% of Mahindra & Mahindra’s assembly line parts use specialised racks, but Ishwar says the company is working on standardising the racks’ outer structures with modular internal fitments and separators, in part to avoid redundancy after a product change. “Our objective is to use standardised metal racks as much as possible, with minor customisation,” says Ishwar.
Magna Steyr’s Hammerschmid says that the key is to use the same outer frame but change the internal material. For example, hoods need separators, which are plastic. If the specialised metal rack would be in use later for a similar part, then it is only necessary to change the plastic separator.
Surgere provides specialised rack designs for each part that may also be suitable for a part family. “For example, for interior door trim panels, we try to design one rack that can handle all four panels and for a complementary vehicle for an entire assembly plant,” says Schweers.
Sethi says that the idea is to standardise the size for ease of handling and within the vehicle’s inner dimensions, and to make it rollable and stackable at the same time, while making customisation as modular as possible.
Agarwa says that specialised metal racks continue to move towards reusability. “Rack frames are set in standard sizes, with footprints that cube the conveyance,” explains Agarwal. “Dunnage designs focus on reusability and removability. The life of the steel skeleton frame is 10-20 years, whereas the part-specific dunnage is good for 3-7 years.”
Maintenance and handling

Along with weight, another challenge is maintenance. “Although specialised metal racks may be foldable, a lot of effort is required to remove the pillars, and other parts of the rack, so the question is how to simplify it,” says Hammerschmid. “Furthermore, preventative maintenance is very expensive. Therefore, we would remove the small plastic parts instead of the large metal parts. In such circumstances, 90-95% of the rack would be usable for six or seven years.”
Within the past two years, Fiat India has made changes in the storage pockets and partitions for specialised racks by replacing the polypropylene sheets with special fabric that protects the parts better and is more durable and low maintenance. These changes have helped Fiat India to reduce the maintenance cost of its specialised racks.
Fiat India faces a number of other challenges to using specialised metal racks that include non-standard trucks, the quality of the trucks and the facilities for handling various types of vehicles, and poor rack maintenance – all of which Pathak says that it has successfully addressed.
Ishwar says that for Mahindra & Mahindra also sees issues with the availability of material handling equipment at loading points, warehouses and crossdocks. “Many of our tier one suppliers do not have forklifts, so we must provide them,” says Ishwar.

Pure Fabrication

Michigan-based Advanta Industries, which specialises in manufacturing automotive material handling equipment, serves Ford, Chrysler, Toyota, General Motors, Hyundai, Kia, and BMW, as well as tier one suppliers.
Adam Drake, vice-president, sales, and business development, says that standardised metal racks are mostly for parts that can be bulk packed and do not have an automotive finish class of B or higher. “More than 90% of part commodities have an automotive finish class of B or higher and require a unique rack design that provides part protection and maximises rack and trailer density,” says Drake.

Advanta rack
“As plants continue to utilise robotic technology to load and unload parts, the material handling racks must maintain a tight tolerance, work with the line side robotics and lift assists and be able to protect the parts during in-plant and truck or rail transit,” he states.
For example, certain roof racks will be changing from steel to aluminium in 2015. “They will be robotically loaded and unloaded, which means that the dimensions of the rack must be extremely precise. The problem is that the contents could shift during transport,” he says.
Advanta’s highest demand is for the specialised metal rack to do more and more. Adds Drake, “this issues are more than just transportation and safety. There needs to be more lift assists and less human error. Fabricators must become leaner.”

Tier one standards

Armin Hans, Tenneco’s European logistics and packaging engineer, says that the tier supplier uses about 15% specialised metal racks and 85% standardised ones. In using such equipment it aims to maximise its truckload utilisation as well as consider OEM requirements for storage and sequencing.
“The main factors that determine whether we would use a specialised metal rack or a standardised one are part design, quality, and delivery forms and frequency, such as JIT, JIS, batch, etc.,” says Hans.
Tenneco’s full exhaust systems ship 80% in specialised metal racks. These include flex pipes, dampers, and chrome polished end pipes. “For pre-transport, we use standardised racks for shipping to the 3PL. Then, the sequencing rack is the [OEM’s] design for the most part. It requires a special robotic arm for automated handling, including feeding heavy parts into the rack.”

Security stock
Hans says that for its less frequent shipments, Tenneco is more likely to use specialised metal racks, whereas for daily shipments, it checks on whether or not it can use standardised racks.
“One of our challenges is to cover as many product variants as possible with one specialised rack,” he says. “Specialised racks for a specific project could be in use for five or six years. When the project is completed, it does not make sense to redesign the existing rack.”
Another challenge is to reduce the storage space, handling, and transport required in the total supply chain. For example, standard racks are 1.2 metres in width, so two can fit into a truck. However, specialised racks are 1.4 metres in width, so only one can fit. Tenneco has redesigned its racks to improve load capacity in mega trailers, thus reducing its space, transport, and handling requirements. In some cases, it also reduced the quantity of specialised racks required. These measures have led to cost reductions of 15-20% within the past several years, according to Hans.
Looking ahead, Hans says that there is a big opportunity to standardise metal racks for ocean transport. “Every supplier has its own. At this point, about 80% are one way and 20% are returnable,” he says.
Specialised racks are expensive, heavy and time-consuming to both procure and manage. Such equipment takes up capital spending that many would consider ‘non-core’ to carmakers. However, the protection and storage they provide are impossible to do without. A shift towards modular designs among packaging engineers seems to be strengthening, even while the use of specialised metal racks will likely grow as product variations increase and there are more space constraints at plants and warehouses.
